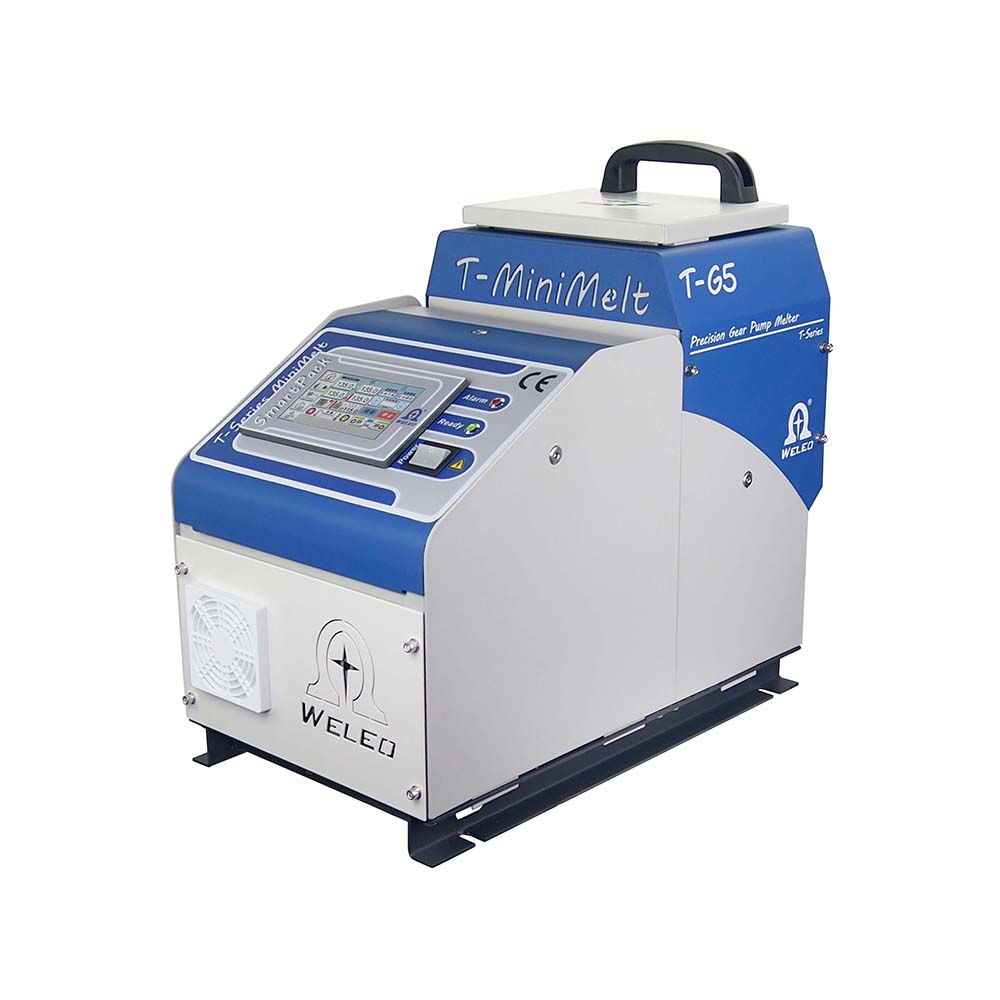

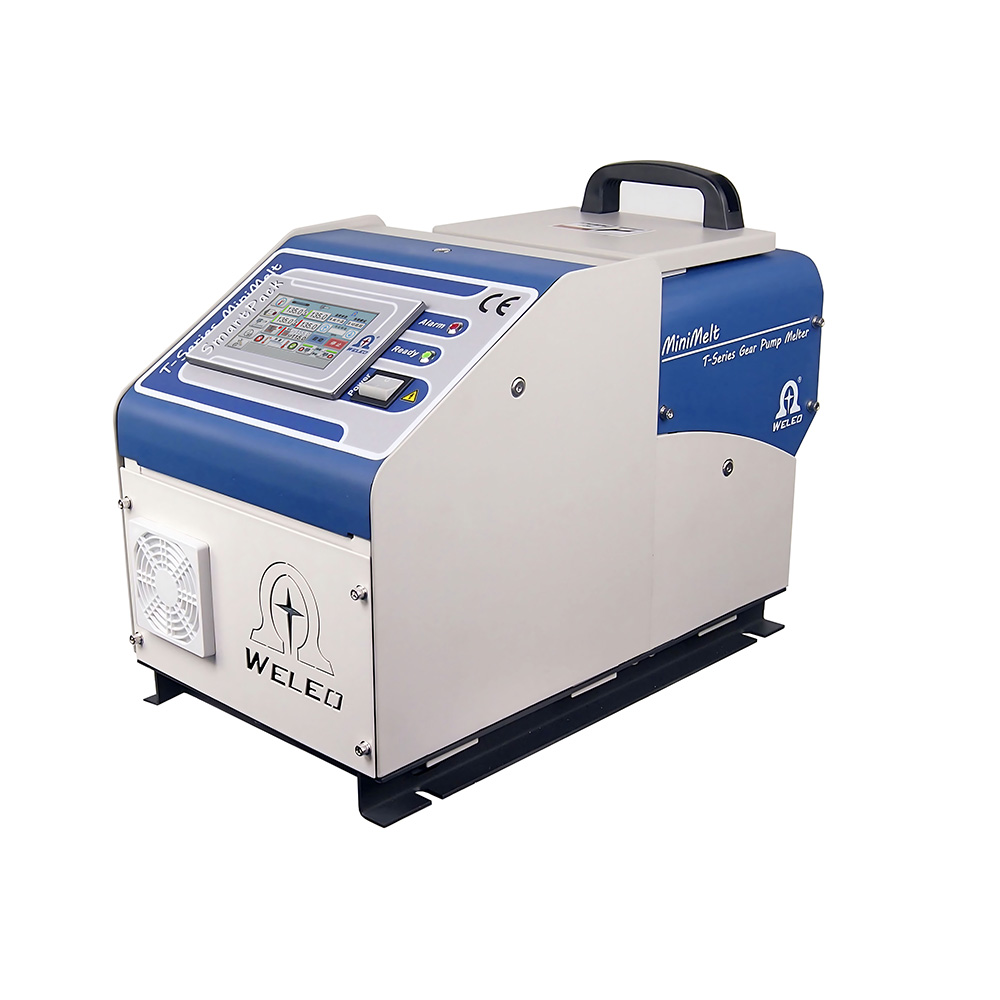

T-Series Low Volume Precision Gear Pump Adhesives Melter
Category: Hot Melt Adhesive Supply Units
-
+86 13502848350 WhatsApp
-
1404078735@qq.com Email
The T series hot melt glue machine is a compact yet powerful tool for modern automated lines. Available in 3kg, 5kg, and 9kg capacities, it suits different production needs. It can be fitted with 2 to 4 glue hoses for versatile adhesive tasks.
Its key feature is a precise gear pump system that ensures stable glue flow and allows for single or double-layer output, boosting accuracy and flexibility. With real-time glue level monitoring, it prevents disruptions and ensures smooth operations.
The melting tank has a Teflon coating for durability and a double-layer insulation for temperature stability, resulting in better bonding and efficiency.
In short, the T series is a perfect match for automated lines, enhancing production quality and efficiency.
T-Series Low Volume Precision Gear Pump Adhesives Melter Specifications
| Melter Model | T-Mini 3 | TG-5 | TT-G9 |
| Tank Capacity | 2.5kg | 4.8kg | 9kg |
| Melt Rate (per hour) (Dependent on adhesive ) | 24 kg/hr | 33 kg/hr | 42 kg/hr |
| Pre-Melt Grid (Optional) | N/A | N/A | N/A |
| Level Sensor (opotional) | Yes | ||
| Max. Number of Hose / Head | 2H/2G | 2H/2G | 4H/4G |
| Max. Wattage per Hose/Head | |||
| 2Hose / 2Head | 4000W | 4000W | 4000W |
| 4Hose / 4Head | N/A | N/A | 8000W |
| Size of HMI Touch Screen | 5" inch | 5" inch | 7" inch |
| Type of Sensor | Platinum PT100 < Nickel RTD Ni120 / FE-KO > (Option) | Platinum PT100 < RTD Ni120 / FE-KO / NTC > (Option) | |
| Number of Patten Control | 2/4 | ||
| Working Viscosity (Centipoise) | 500-50000 cps | ||
| OperatingTemperature | 38 - 210°C | ||
| Gear Pump Standard | 1.5~3.2 cc/rev | 1.5~3.2 cc/rev | 1.5~3.2~4.5 cc/rev |
| Gear Pump / Drives | 1 Motor | ||
| Operating Glue Pressure | (68bar)1000psi | ||
| Electrical Voltage (Standard) | 220 VAC 1PH 60Hz | ||
| Electrical Voltage (Option) | 380 VAC 3PH+N 60Hz | ||
| Net Weight | 41kg | 44kg | 59kg |
| Dimensions (L x W x H) | 536.5x300x373 | 534.5x300x464 | 698x337x420 |
| Ambient Temperature | -5-70°C | ||
| Unit Wattage | 1.2KW | 1.7kw | 2.4kw |
T-Series Low Volume Precision Gear Pump Adhesives Melter Overview
● 3/5/9kg Hopper capacity
● Die-Cast hopper increase heat efficiency with Teflon coating
● The melting tank with an insulation jacket saving energy
● Removable access both side of covers expose easy maintenance
● Gear pump 0.16 cc to 5.4cc single/dual pump
● Precision gear pump adhesive pressure up tp 1000psi
● Melter built-in primary filter and high efficiency filter
● Maximum connect with 4hose/4head applicators
● 7" HMI high resolution color touchpad
● System status message display immediate
● Temperature sensor compatible with Pt100, Ni120, NTC or FE-KO
● Melter Key to production line connection
● 7 days schedule melter on/off
● Temperature standby mode on/off
● Glue dispensing pattern conrtrol with high speed distance compensate
● Adhesvies low level sensor with alarm (optional)
