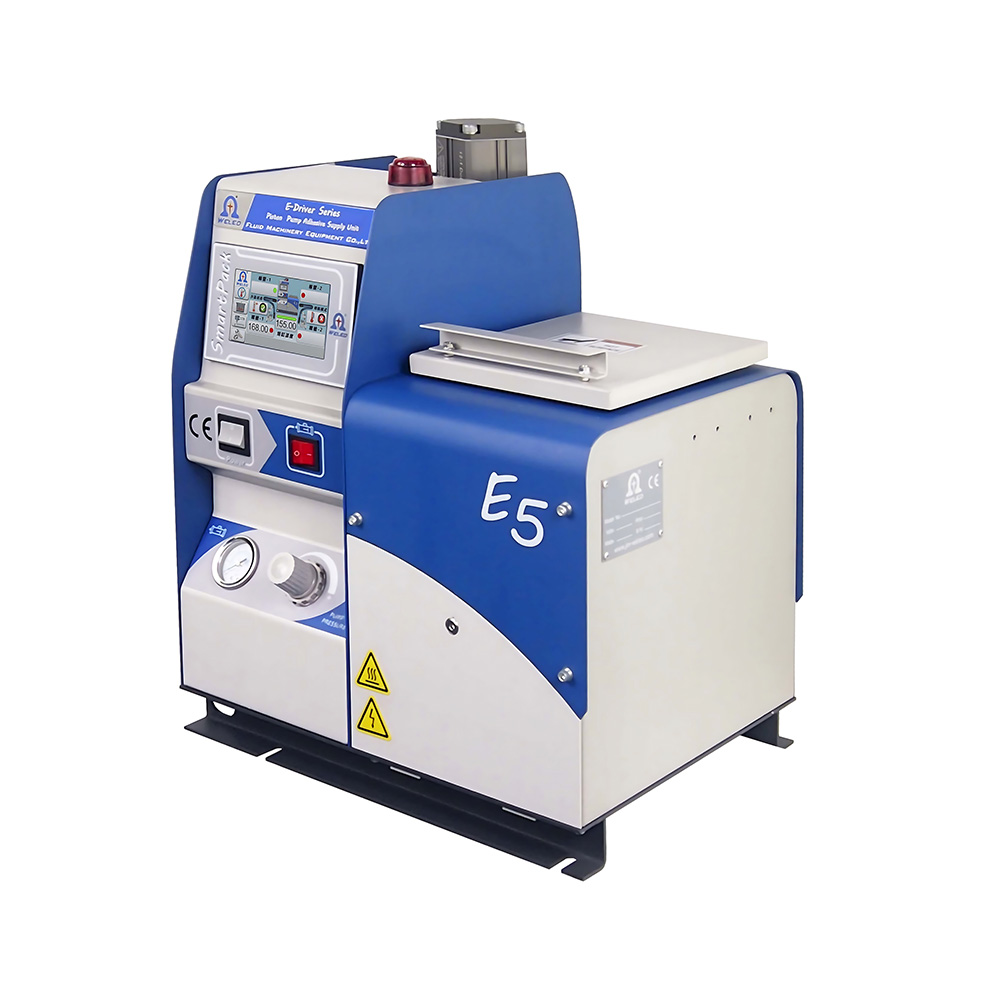

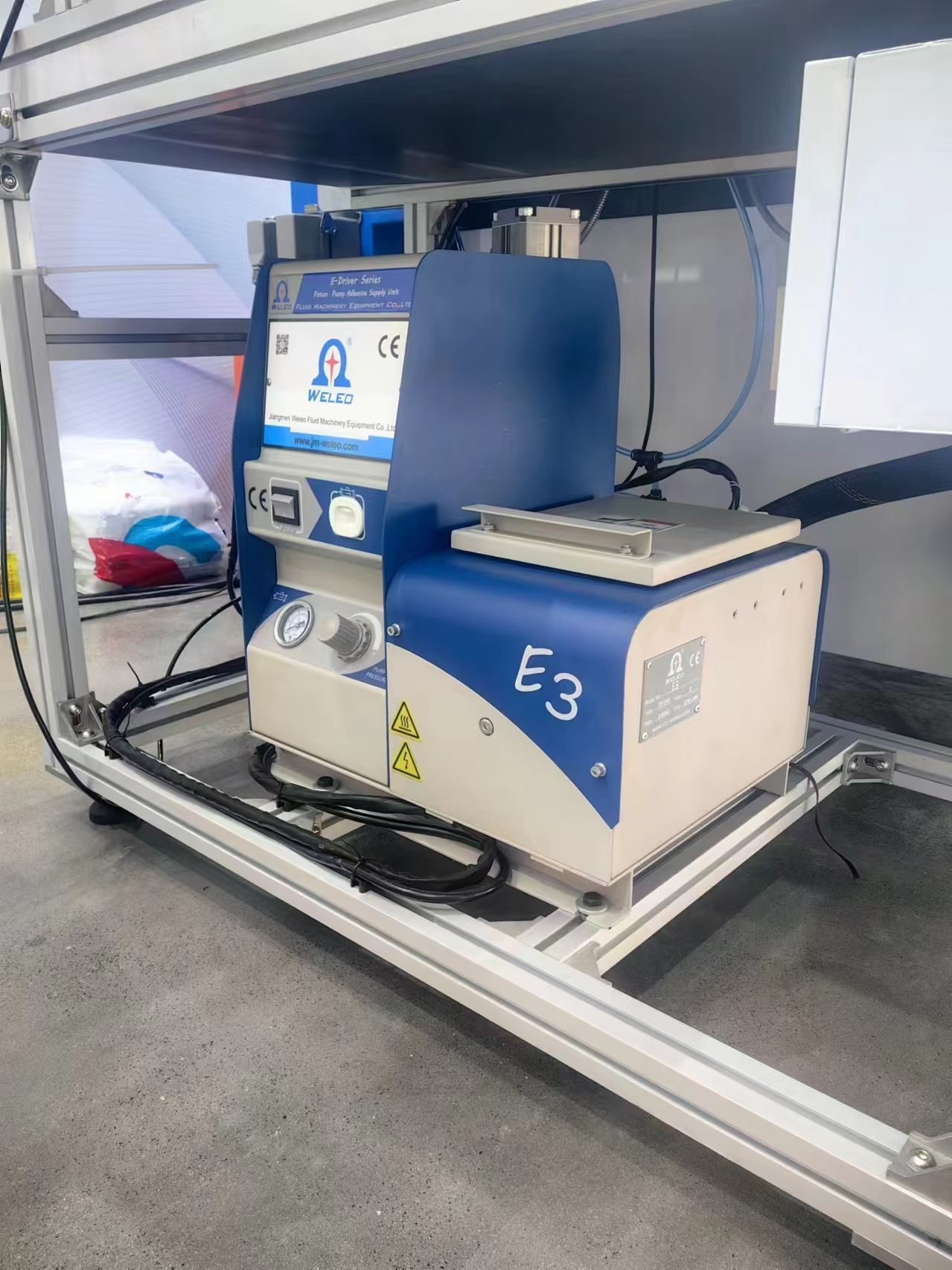

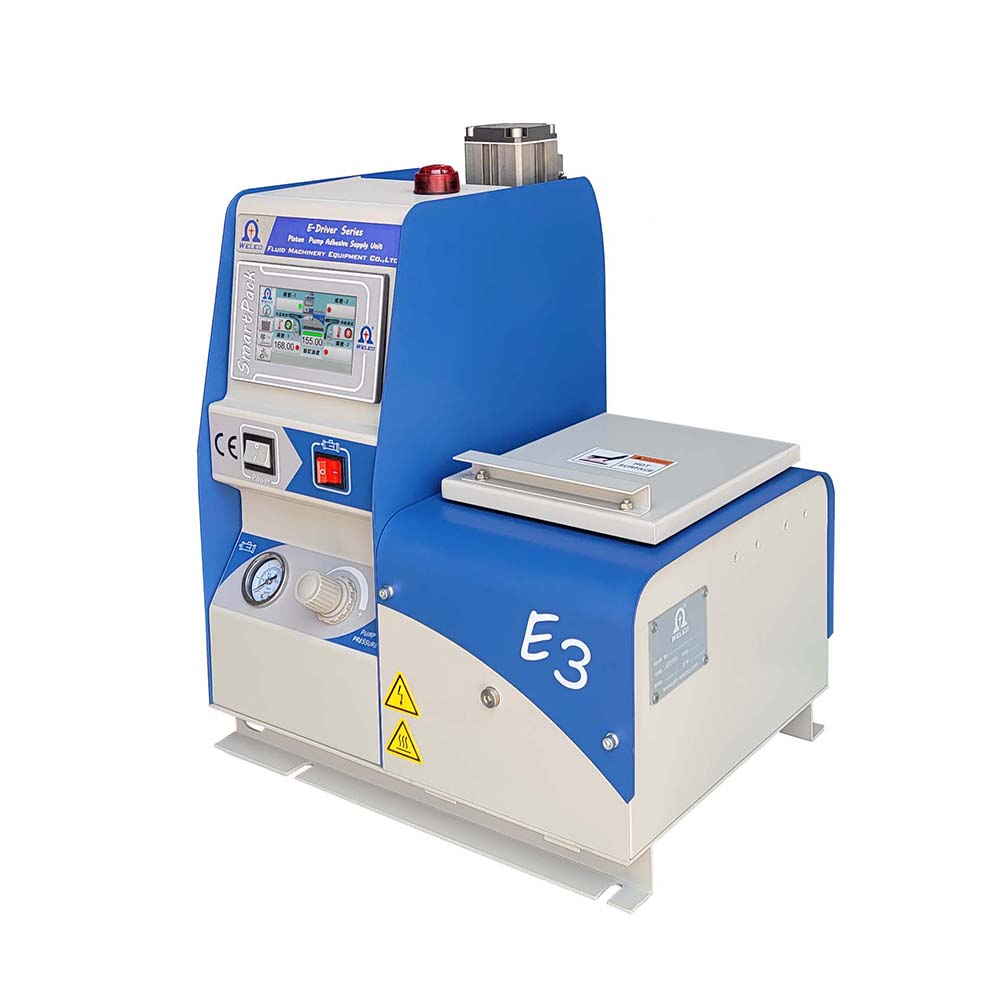

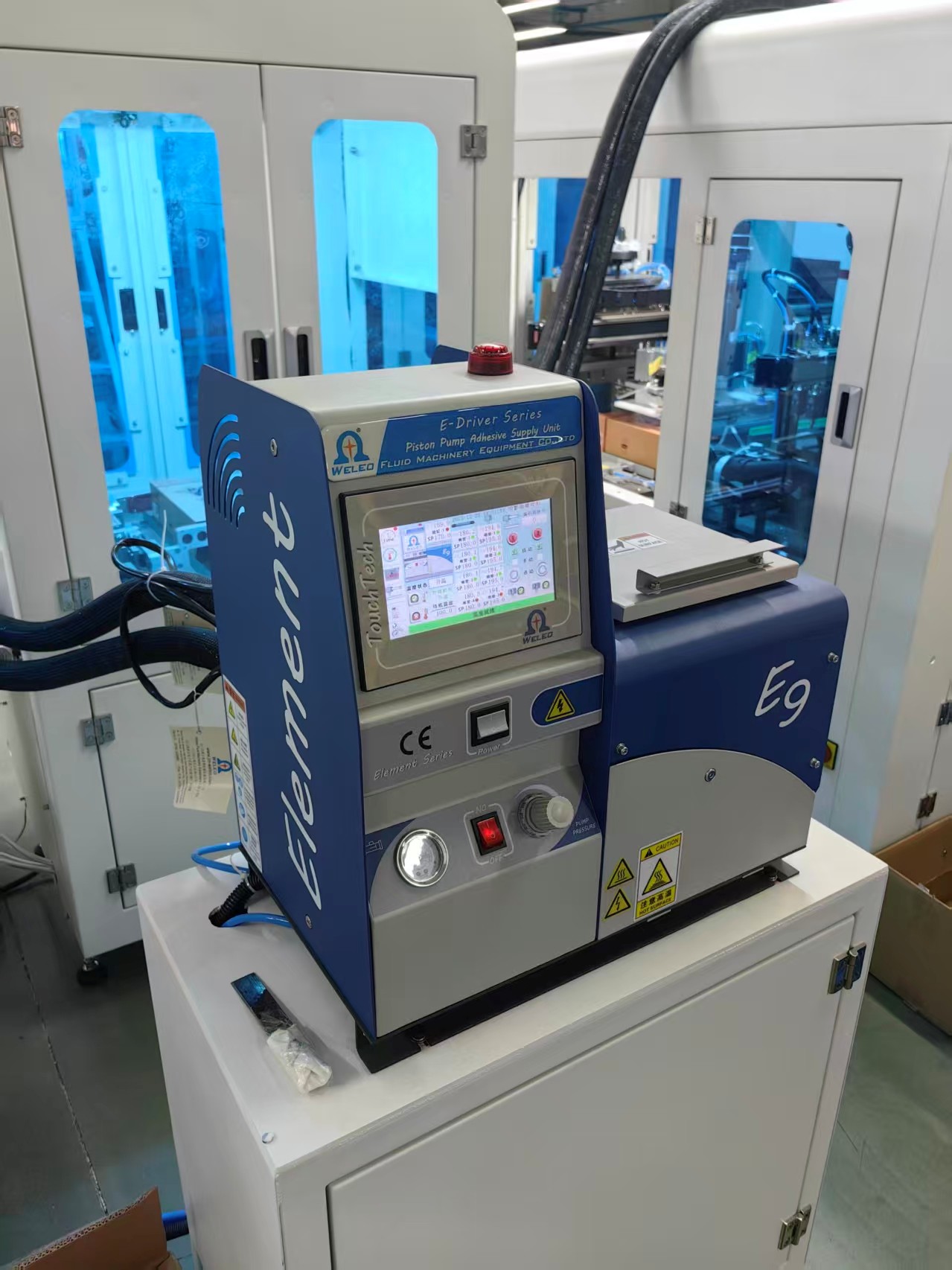

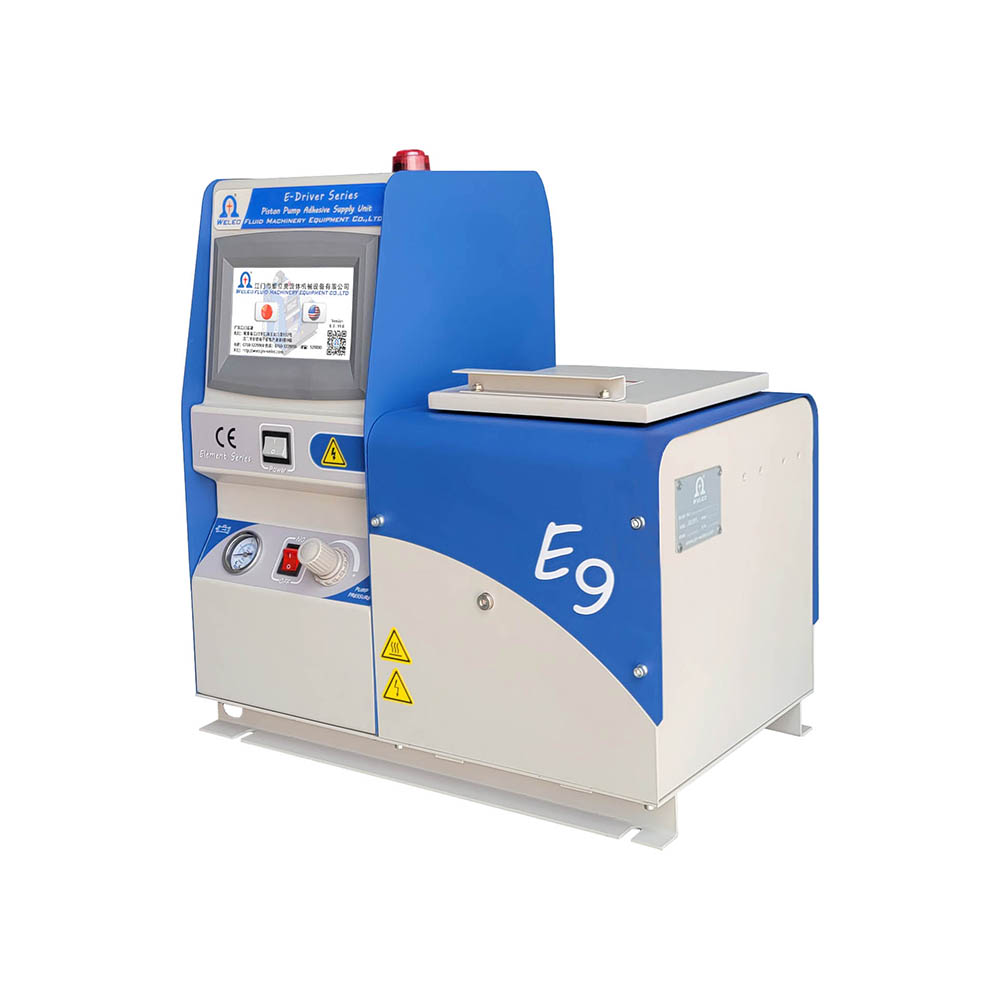

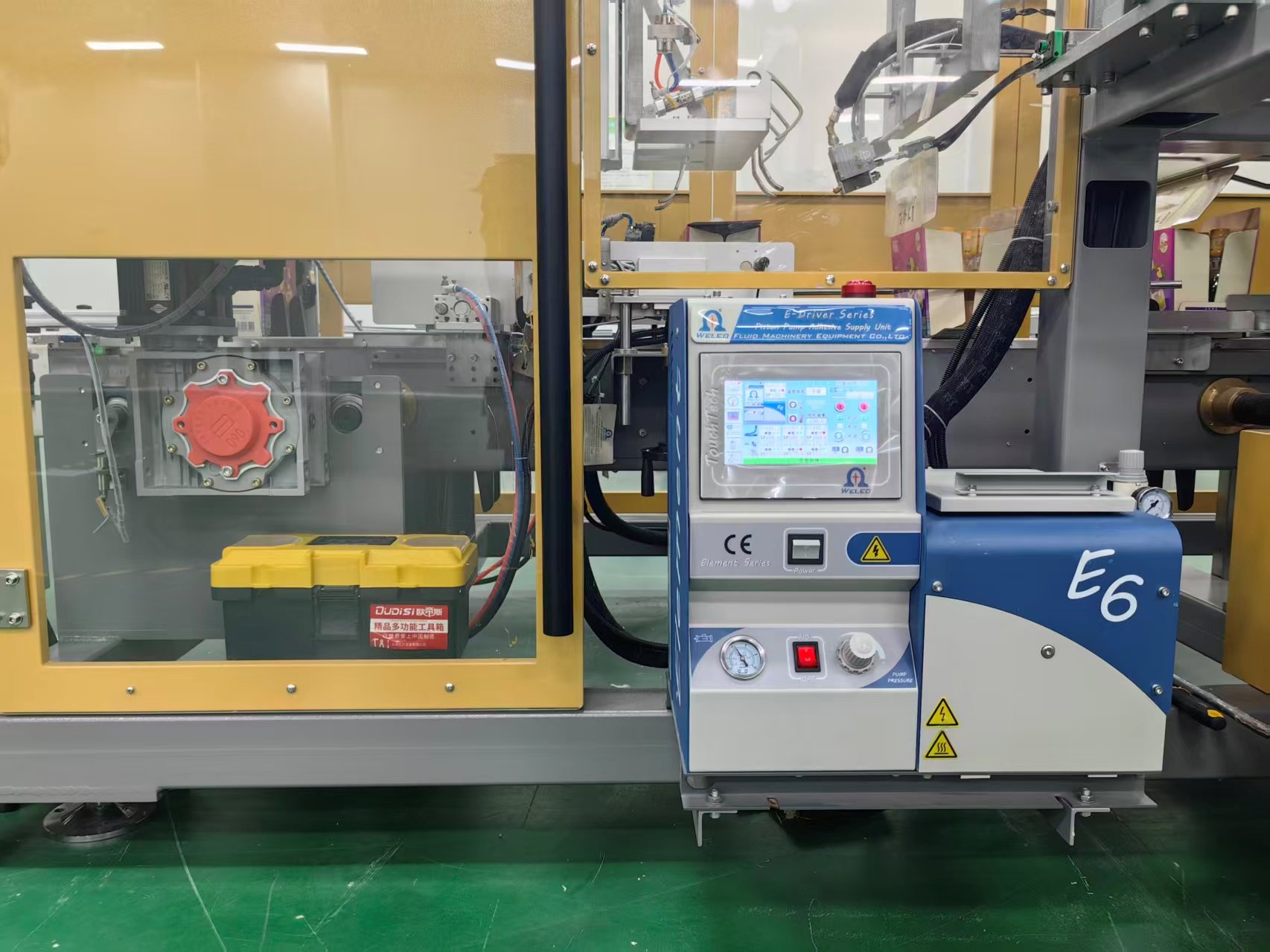

Element Piston Pump Adhesives Melter Series
PRODUCTS DESCRIPTION

The Weleo Element series piston pump melter, blending sleek design with outstanding performance. Its simplified operation, featuring temperature and pressure controls in one direction, boosts work efficiency. Available in compact sizes with capacities ranging from 3 to 20kg, it suits various working environments and automated equipment needs. The large-capacity model supports up to 8 hose connections and can run dual piston pumps simultaneously, enhancing productivity.


Equipped with a pneumatic return valve for stable pressure control and glue leakage prevention, it also features an upgraded control system that integrates intelligent dispensing and spraying technologies. The melting chamber, coated with durable Teflon, prevents carbonization and ensures easy cleaning, prolonging the machine's lifespan.


This hot melt glue machine offers efficient, stable performance, prioritizing user experience and easy maintenance. Perfect for both small-scale manual and large-scale automated production, it's the ideal solution to make your production line more efficient, flexible, and ready for any challenge.


Element Piston Pump Adhesives Melter Series Specifications

Melter ModeE3E5E6E9
Tank Capacity2.8kg4.8kg5.8kg9kg
Melt Rate (per hour)
(Dependent on adhesive )
3.5kg/hr5.3kg/hr8.5kg/hr11kg/hr
Number of Hose / Head2234
Max. Wattage per Hose/Head
2 Hose/Head4000W4000W4000W4000W
4 Hose/HeadN/AN/A8000W8000W
Size of HMI Screen5" inch5" inch7" inch7" inch
Type of SensorPlatinum PT100  Platinum  PT100  < Ni120 / NTC / FE-KO (Option)>
Number of Patten Control (option)2244
Working Viscosity (Centipoise)500-50000 cps
OperatingTemperature38-210°C
Pump Ratio12:112:112:116:1 / 20:1
Adhesive delivery rate0.9kg0.9kg0.9kg1.1kg / 2.6kg
Operating Glue Pressure1000psi1000psi1000psi1000psi
Pressure control valveMechanical Relief ValvePneumatic  Relief Valve
Electrical Voltage (Standard)220 VAC 1PH 60Hz
Electrical Voltage (Option)380 VAC 3PH+N 60Hz
Net Weight37.5kg41kg47kg52kg
Dimensions (L x W x H)418 x 361 x 513.5418 x 361 x 513.5491 x 386.5 x 537.5523 x 398 x 572.5
Ambient Temperature-5-70°C
Unit Wattage1.4KW1.4kw1.6kw2kw

Element Piston Pump Adhesives Melter Series Features

●‌ Sleek Design‌ Innovative and fashionable appearance.

●‌ Efficient Operation‌ Temperature and pressure operating in one direction, easy to operate.

●‌ Compact Size‌ Adapts to diverse environments, flexible deployment.

●‌ Multiple Capacities‌ Options from 3-20kg, meeting various needs.

●‌ Multi-Hose Connection‌ Supports up to 8 hoses, highly expandable.

●‌ Dual-Pump Operation‌ Large capacity with dual pumps, boosting productivity.

● Pneumatic return valve ensures stable pressure.

●‌ Smart Control‌: Integrates intelligent technology for multifunctional operation.

● Teflon coating prevents carbonization and facilitates easy cleaning.


About WELEO

Weleo is a professional supplier of hot melt adhesive equipment, with products widely used in beverage packaging, food packaging, paper products, atomizer assembly, new energy, non-woven fabrics, labels, and automation industries. The company specializes in developing high-performance hot melt adhesive application equipment. Its main product lines include piston pump series, high-precision gear pump series, quantitative spraying systems, PUR reactive hot melt adhesive equipment, and cold gluing systems.

To ensure premium service quality, Weleo has established a comprehensive distributor network with multiple service centers across China, including locations in Beijing and Wenzhou. The company is continuously expanding its global presence and has established branches in Thailand, Brazil, Russia, Philippines, Vietnam, South Korea, and other countries to provide customers with efficient and convenient worldwide service support.
