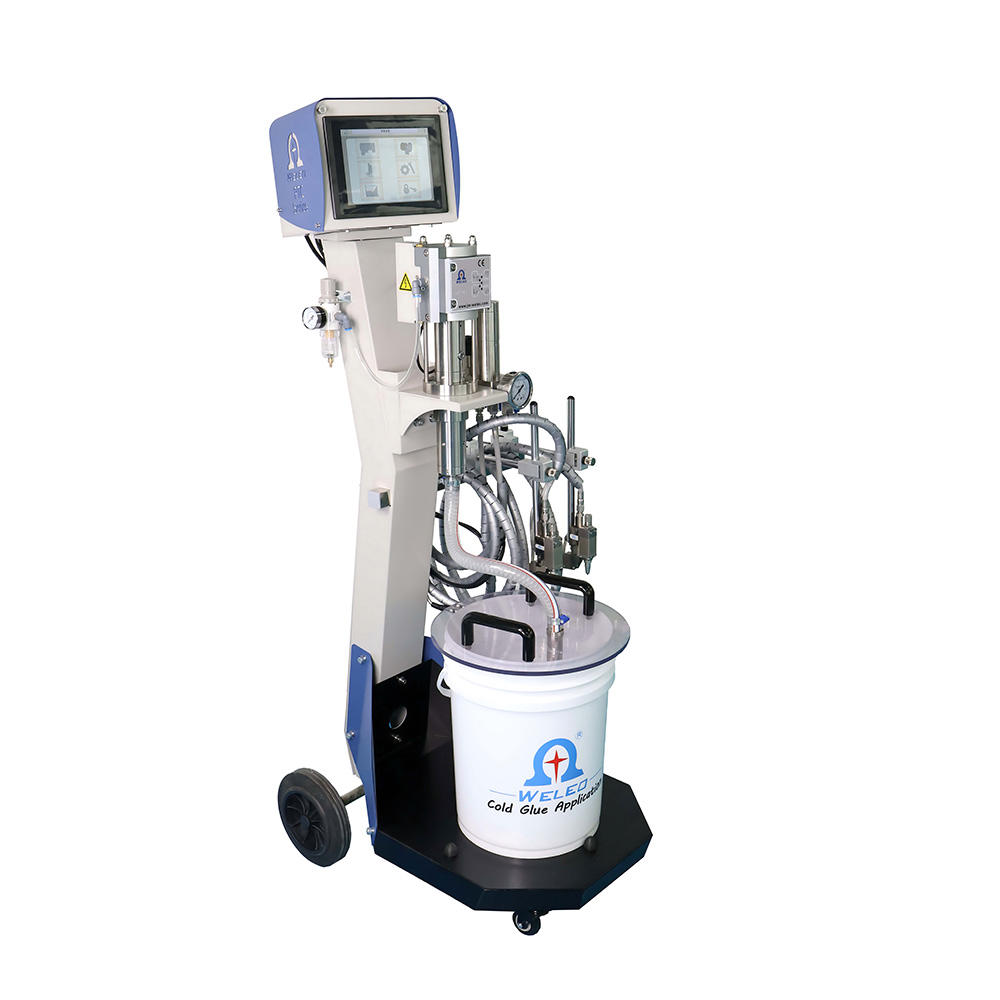

CGP Cold Gluing Pump Dispensing System
Category: Cold Glueing Pump Dispensing System
-
+86 13502848350 WhatsApp
-
1404078735@qq.com Email
Our cold glue dispensing system features an all-stainless steel piston pump with electronic commutation. The pressure transducer enables real-time pressure adjustment via control panel. It achieves precise thread-like dispensing with encoder positioning (±0.1mm accuracy) at speeds up to 300m/min. The dual-filter design (pump & manifold) ensures clean glue flow. Ideal for carton sealing, box forming and product assembly, this durable system boosts packaging efficiency with intelligent control.
CGP Cold Gluing Pump Dispensing System Specifications
| Melter Mode | CGP-6 |
| Tank Pail | 20kg |
| Number of Hose / Gun | 5 or 10 |
| Size of HMI Screen | 8" inch |
| Number of Patten Control | 5 or 10 |
| Working Viscosity | 5000mPas |
| Pump Ratio | 6:1 |
| Electrical Voltage (Standard) | 220 VAC 1PH 50-60Hz |
| Net Weight | 41kg |
| Ambient Temperature | 70°C |
CGP Cold Gluing Pump Dispensing System Features
● 8” HMI high resolution touch screen
● 5 or 10 Channel Spray Pattren Control
● Glue Spraying Pressure Control
● Glue Pressure Gague
● Large Screen Spray Gun Filter Tube Glue
● Pressure Transducer

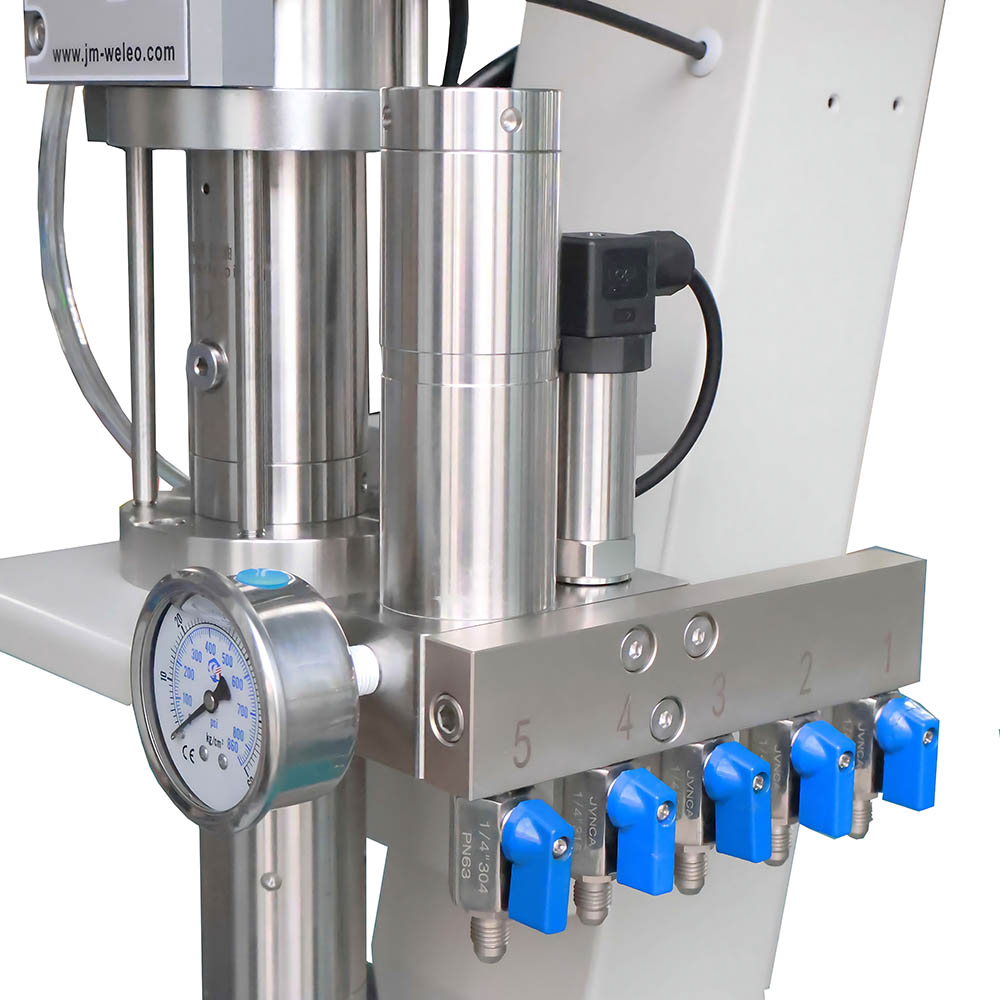

● Single Ball Valve Control Each Gun on/off

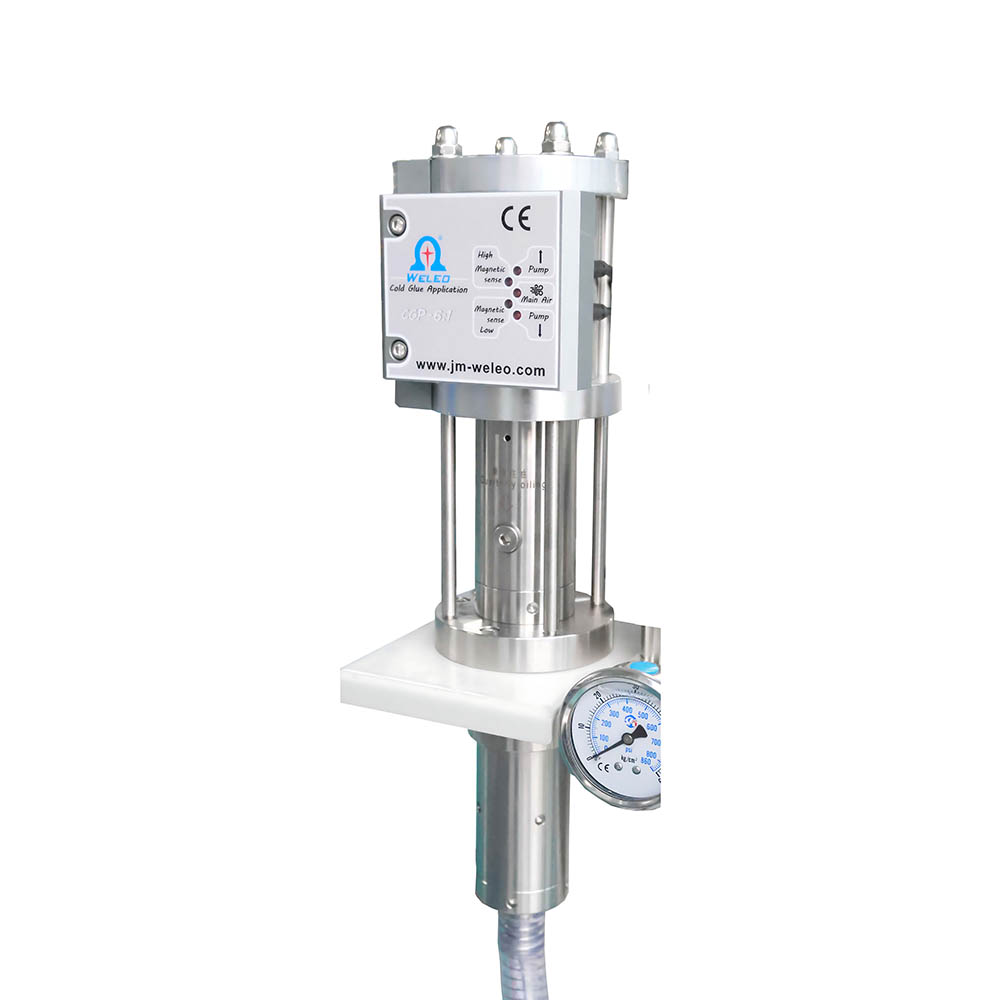

● Piston Pump Ratio 6:1
● Electronic Magnetic Stroke
● Main Air Regulator Filter Kit
● Easy Maintenance Design
● LED Light Indicator Pump Sate

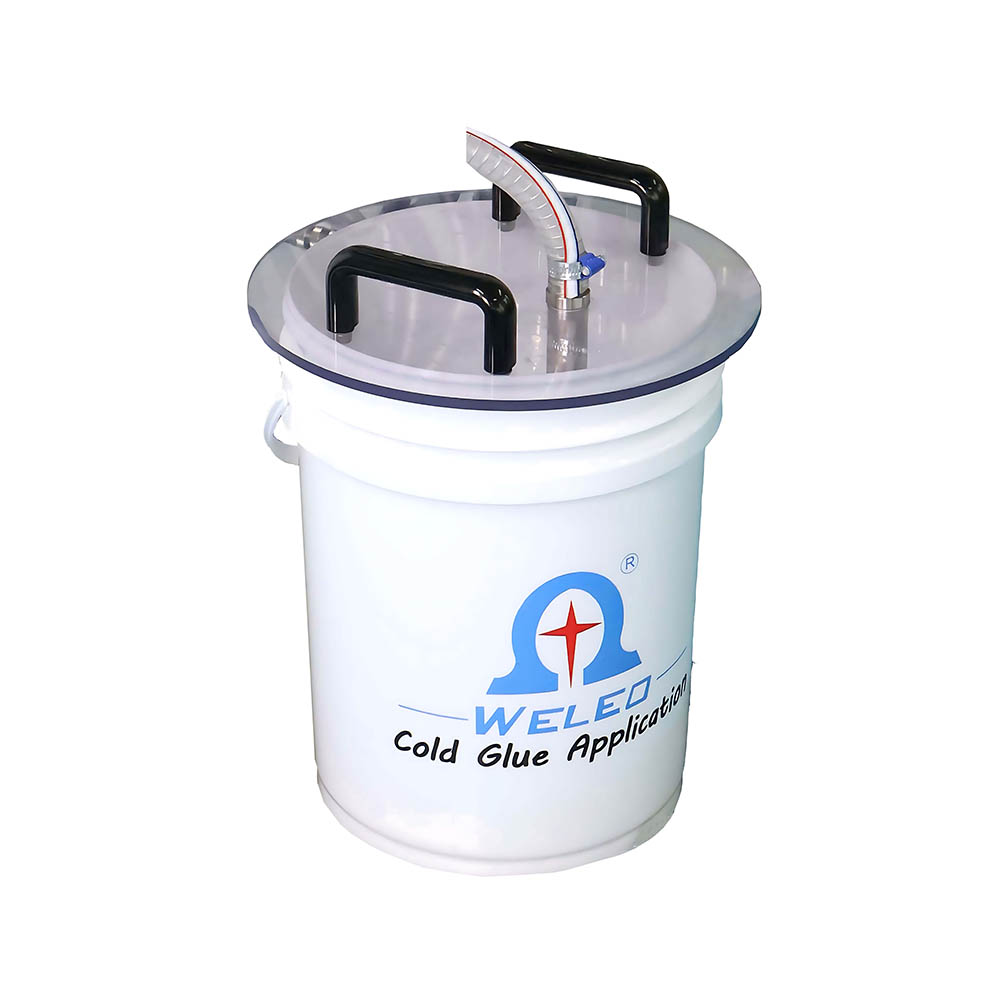

● 20 Liters Feed Pail
● Suction Pipe with Check Valve
● Pipe with Primary Filter Screen
Weleo is a professional supplier of hot melt adhesive equipment, with products widely used in beverage packaging, food packaging, paper products, atomizer assembly, new energy, non-woven fabrics, labels, and automation industries. The company specializes in developing high-performance hot melt adhesive application equipment. Its main product lines include piston pump series, high-precision gear pump series, quantitative spraying systems, PUR reactive hot melt adhesive equipment, and cold gluing systems.
To ensure premium service quality, Weleo has established a comprehensive distributor network with multiple service centers across China, including locations in Beijing and Wenzhou. The company is continuously expanding its global presence and has established branches in Thailand, Brazil, Russia, Philippines, Vietnam, South Korea, and other countries to provide customers with efficient and convenient worldwide service support.
